Product Description:

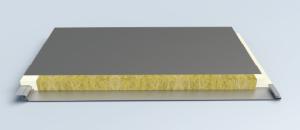

Rockwool Sandwich Panel is a kind of composite board made of rockwool and PU, which is an ideal construction material for insulation and soundproof purpose. It is designed with a customized length to meet various needs, and the width is 1000mm. The color steel skin is tough and durable, perfect for construction insulation, shop outdoor office, etc. The rockwool insulated sandwich board provides excellent soundproof and thermal insulation performance for superior protection.
Features:
| Product | Rock Wool Sandwich Panel | Rock Wool Sandwich Panel with Pur or Pir Edge |
| Width | 1000mm | 1000mm |
| Top plate/Bottom | 0.4-1mm | 0.4-1mm |
| Core thickness | 50mm,75mm,100mm,120mm,150mm,200mm | 50mm,75mm,100mm,120mm,150mm,200mm |
| Length | Less than 11.8m (For transport need) | Less than 11.8m (For transport need) |
| Density | 100-180kg/m3 | 100-180kg/m3 |
| Color | White, Red, Blue,Customized | White, Red, Blue,Customized |
| Connection Way | Hidden | Hidden |
| Sound insulation | 20-25db | 20-25db |
| Application | various walls of large size factory warehouse, exhibition halls,gymnasiums | various walls of large size factory warehouse,exhibition halls, gymnasiums |
Technical Parameters:
| Technical parameters of BAODU new model fireproof sandwich panel | | Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | | S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | | 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 | | 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 | | 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 | | 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 | | 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 | | 200 | 0.23 | 22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 | | Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | | S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | | 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 | | 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 | | 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 | | 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 | | 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 | | 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 | |
Applications:
BAODU Rockwool Insulated Sandwich Board is the ideal solution for Wall Building, Warehouse Roofing, and Wall and Roof applications. Our Rockwool Sandwich Panels are made from quality Rockwool Insulated Board, offering superior thermal insulation and fire resistance. With our Rockwool Insulated Board, you can enjoy benefits such as improved energy efficiency, lower energy costs, and a healthier indoor environment. With a thickness of 50mm, 75mm, 80mm, 100mm, 125mm, 150mm, and 200mm, and a density of 100kg/m3, our Rockwool Sandwich Panels are available in a variety of RAL colors and can be customized to meet your specific needs. With a minimum order quantity of discussed, and a reasonable price, you can rest assured that you are getting the best value for your money. BAODU Rockwool Insulated Sandwich Board is the perfect solution for your Wall Building, Warehouse Roofing, and Wall and Roof applications.
Our Rockwool Insulated Sandwich Board can be delivered within 15 days and payment terms include L/C, D/A, D/P, T/T, Western Union, and MoneyGram. We have a supply capacity of 5000 Square Meters per Day, so you can trust us to meet your needs. At BAODU, we strive to provide the highest quality Rockwool Insulated Sandwich Board at the most reasonable prices.
Support and Services:
Rockwool Sandwich Panel Technical Support and Service
Rockwool Sandwich Panel is a highly specialized product and requires technical support and service to ensure proper installation and use. We provide a comprehensive range of services to support our customer's needs, including:
- Technical advice on product selection, installation and use.
- Onsite installation assistance.
- Technical support for problem solving.
- Site visits to ensure correct installation is being carried out.
- Post-installation support and maintenance.
- Regular maintenance and service checks.
Our team of experienced professionals is always available to provide technical support and service for Rockwool Sandwich Panel. Contact us today to discuss your project and find out how we can help you.
