Product Description:

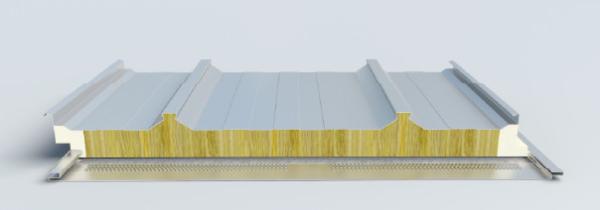

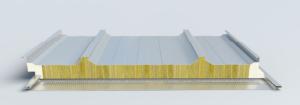

Rockwool Composite Panels, also known as Rockwool Sandwich Panels or Rockwool Sandwich Board, is a modern style panel made of high quality materials. It has a density of 100kg/m3, providing good soundproof performance and excellent thermal insulation. It is available in different lengths and colors, including RAL colors, and can also be customized according to your own unique design style. The Rockwool Sandwich Panel is a lightweight, durable and cost-effective way to protect your building from noise and heat.
Features:
- Product Name: Rockwool Sandwich Panel
- Application: Wall Building Warehouse Roofing Wall And Roof
- Design Style: Modern
- Length: Customized
- Width: 1000mm
- Color: RAL Color; Customized
- Keywords: Rockwool Insulated Panels, Rockwool Sandwich Panels, Rockwool Insulated Panels
Technical Parameters:
| Technical parameters of BAODU new model fireproof sandwich panel | | Allowable vertical load and thermal conductivity of BAODU new model fireproof rockwool roof sandwich panel (allowable deflection f≤L/200) | | S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | | 50 | 0.75 | 15.53 | L(m) | 3.66 | 3.13 | 2.75 | 2.46 | 2.12 | | 70 | 0.53 | 18.37 | L(m) | 4.90 | 4.22 | 3.73 | 3.35 | 2.91 | | 100 | 0.41 | 21.21 | L(m) | 5.99 | 5.17 | 4.58 | 4.12 | 3.59 | | 125 | 0.36 | 24.05 | L(m) | 6.91 | 5.96 | 5.28 | 4.79 | 4.14 | | 150 | 0.31 | 26.88 | L(m) | 7.82 | 6.75 | 5.98 | 5.37 | 4.68 | | 200 | 0.23 | 22.78 | L(m) | 9.65 | 8.33 | 7.38 | 6.62 | 5.77 | | Allowable vertical load and thermal conductivity of BAODU new model fireproof glasswool roof sandwich panel (allowable deflection f≤L/200) | | S(mm) | W/m²K | G(kg) | P=KN/m2 | 0.60 | 0.80 | 1.00 | 1.20 | 1.50 | | 50 | 0.69 | 12.95 | L(m) | 3.74 | 3.23 | 2.86 | 2.57 | 2.23 | | 70 | 0.47 | 14.50 | L(m) | 5.01 | 4.34 | 3.86 | 3.48 | 3.05 | | 100 | 0.36 | 16.04 | L(m) | 6.21 | 5.32 | 4.73 | 4.28 | 3.75 | | 125 | 0.34 | 17.06 | L(m) | 7.11 | 6.31 | 5.77 | 4.93 | 4.32 | | 150 | 0.33 | 19.14 | L(m) | 8.00 | 6.94 | 6.18 | 5.58 | 4.89 | | 200 | 0.30 | 22.78 | L(m) | 9.79 | 8.56 | 7.63 | 6.88 | 6.00 | |
Applications:
BAODU's Rockwool Sandwich Panel offers an effective solution for large-scale wall building, warehouse roofing, and wall and roof insulation. Made of high-quality rock wool, the panel provides excellent soundproofing, heat-insulation, and thickness up to 50mm, 75mm, 80mm, 100mm, 125mm, 150mm, and 200mm.
Support and Services:
Rockwool Sandwich Panel provides technical support and services to ensure that our products meet the highest quality standards. Our technical support team is available 24/7 to answer any queries and provide advice on installation and maintenance. We also offer a comprehensive warranty and post-sales service to ensure our customers are completely satisfied with their purchase.
