Product Description:
Acoustic Sandwich Panel is a sound insulation panel specially designed to provide superior sound insulation performance. It is made of two layers of high-performance material with an inner core of acoustic foam that provides excellent acoustic insulation. The outer layers provide excellent fireproof grade of A, effectively preventing fire disasters. It also has excellent heat insulation performance, which can effectively reduce the loss of heat energy. The thickness of the panel is available in 50mm, 75mm, 80mm, 100mm, 125mm, 150mm and 200mm, and it also comes in various colors like RAL or customized colors according to customer requirements. Installation is easy and straightforward, making it an ideal sound insulation solution for any environment.
Features:
Plain or Striped sheet surface
• Plate surface is painted galvanized sheet, inner surface is perforated painted galvanized sheet
• Both horizontal and vertical applicability
• Joint detail that hides the screwing system
• Sound insulation and acoustic improvement
Technical Parameters:
| TESTING DATA OF BAODU ACOUSTICAL SANDWICH PANEL | | No. | REPORT ID | TESTING ORGANIZATION | PRODUCT NAME | MATERIAL STRUCTURE (BOTTOM-TO-TOP) | TOTAL THICKNESS (MM) | METAL THICKNESS (MM) | ROCKWOOL/ GLASSWOOL DENSITY (KG/m³) | CEMENT THICKNESS (MM) | DAMPING THICKNESS (MM) | SOUND ABSORBING DATA (NRC) | SOUND INSULATION (Db) | | TESTING STANDARD: GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements; | | 1 | KS-2021-09101 |
ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE
|
SOUND
INSULATION
| STEEL PLATE +CEMENT BOARD+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | 10 | / | / | 38 | | 2 | KS-2021-09102 | STEEL PLATE +DAMPING+ROCKWOOL +STEEL PLATE | 100 | 0.6/0.5 | 120 | / | 3 | / | 37 | | 3 | KS-2021-09103 | STEEL PLATE +CEMENT BOARD+DAMPING +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 39 | | 4 | KS-2021-09104 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL +STEEL PLATE | 100 | 0.5/0.5 | 120 | 10 | 3 | / | 41 | | 5 | KS-2021-09105 | STEEL PLATE +DAMPING+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | / | 3 | / | 37 | | 6 | KS-2021-09106 | STEEL PLATE +CEMENT+ROCKWOOL +DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 3 | // | 37 | | 7 | KS-2021-09107 | STEEL PLATE +DAMPING+CEMENT BOARD +ROCKWOOL+ DAMPING +STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 8 | KS-2021-09108 | STEEL PLATE +CEMENT BOARD +DAMPING+ROCKWOOL +DAMPIGN+STEEL PLATE | 100 | 0.5/0.5 | 120 | 4 | 2 | / | 38 | | 9 | KS-2021-09109 | STAINLESS STEEL PLATE +ROCKWOOL +STAINLESS STEEL PLATE | 100 | 0.5/0.5 | 120 | / | / | / | 34 | | 10 | KS-2021-09110 | STAINLESS STEEL PLATE +ROCKWOO L+STAINLESS STEEL PLATE | 50 | 0.5/0.5 | 120 | / | / | / | 33 | | 11 | KS-2021-09111 | STEEL PLATE +ROCKWOOL +STEEL PLATE | 100 | 0.6/0.6 | 120 | / | / | / | 35 | | TESTING STANDARD: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement | | 12 | KS-2021-09112 | ACOUSTICAL MEASURING& TESTING STATION, CHINESE ACADEMY OF SCIENCE | SOUND ABSORPTION | PERFORATED ALU PLATE +GLASS FIBRE+GLASSWOOL +STEEL PLATE | 80 | 0.6/0.6 | 64 | / | / | 0.95 | / | | TESTING STANDARD:
1.: GB/T20247-2006/iso 354:2003 Acoustics reverberation room sound absorption measurement;
2. GB/T 19889.3-2005/ISO140-3:1995 Acoustics - Measurement of sound insulation in buildings and building elements - Part 3: Laboratory measurement of airborne sound insulation of building elements; | |
Applications:
BAODU Acoustic Sandwich Panel is a perfect choice for sound absorption and insulation in construction, building and other equipments. This panel is made of Rockwool and Glasswool material with steel thickness of 0.4-0.8mm. It can be used for thermal insulation and sound insulation. It is highly durable and is being manufactured by BAODU, Hebei, China.
1.Industrial Facilities
2.Commercial Building
3.Social Construct
4.Power Plants
Support and Services:
Acoustic Sandwich Panel Technical Support and Service
At Acoustic Sandwich Panel, we are dedicated to providing high-quality technical support and service for our products. Our team of highly experienced professionals is available to help you with any questions or issues you may have.
We offer a variety of support services, including:
- 24/7 technical support
- Product troubleshooting
- Online product tutorials
- Product updates and upgrades
- Software and hardware installation and maintenance
- Warranty and repair services
If you have any questions or need assistance, please don't hesitate to contact us. Our team is here to help you get the most out of your Acoustic Sandwich Panel product.
Packing and Shipping:
FAQ:
Q1: What is Acoustic Sandwich Panel?
A1: Acoustic Sandwich Panel is a kind of acoustic absorbent panel made of BAODU brand, Model Number: Acoustic Sandwich Panel which is originated from Hebei,China. And it has a CE certification.
Q2: What is the minimum order quantity?
A2: The minimum order quantity is discussible.
Q3: What is the price of Acoustic Sandwich Panel?
A3: The price of Acoustic Sandwich Panel is reasonable.
Q4: How about the packaging of Acoustic Sandwich Panel?

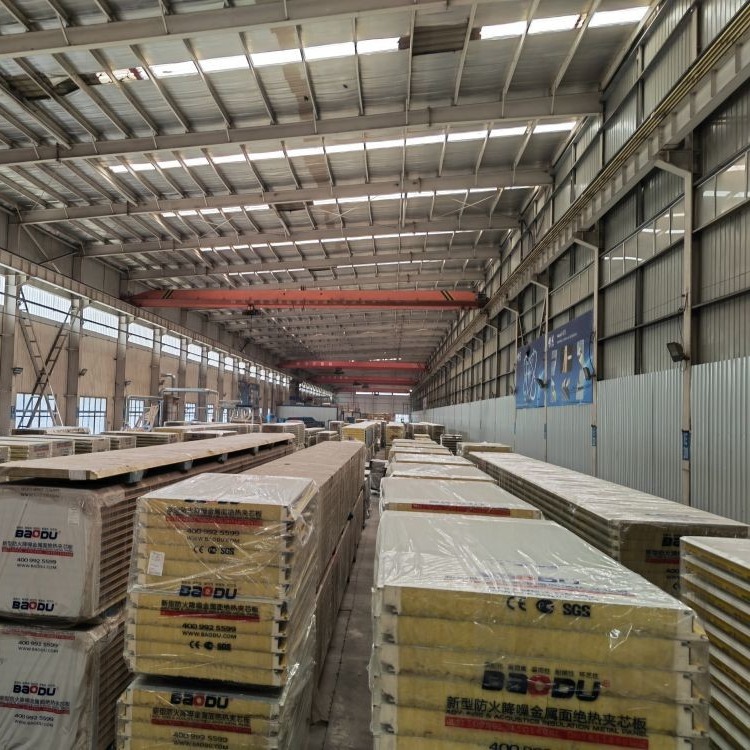

A4: In general, for steel structure, we use the steel frame packing to keep goods not to be broken. For sandwich panel and color steel sheet, we use the plastic packing. If the clients need special packing will according to their requirements.
Q5: How about the delivery time and payment terms?
A5: The delivery time is 15days. And the payment terms are L/C, D/A, D/P, T/T, Western Union, MoneyGram.
