| | | | Physical Properties | | - Standard Thickness | 50mm / 75mm / 100mm / 150mm (±0.5mm tolerance) | | - Surface Density | 50mm: 12.8kg/m²; 100mm: 18.5kg/m² | | - Flexural Strength | ≥0.45MPa (300mm span, concentrated load) | | Thermal Performance | | - Thermal Conductivity | 0.036 W/(m·K) @ 24°C average | | - Linear Shrinkage | | | Acoustic Performance | | - Sound Insulation (Rw) | | | - Noise Reduction Coefficient (NRC) | 0.75-0.85 (500-2000Hz range) | | Chemical Resistance | | - Acid/Alkali Resistance | No corrosion after 72h immersion in 5% HCl/NaOH | | - UV Resistance | ΔE<2.0 after 3,000h QUV accelerated aging | |
Production Process------------------------------------------------------------------------------------
1. Raw Material Selection:
* Basalt rock (SiO₂≥45%, Al₂O₃≥14%) + slag (≥70% recycled)
2. Fiber Production:
* Electric furnace melting (1,500-1,600°C) → Four-roller centrifugal spinning (7,200rpm) → Fiber diameter 4-7μm
3. Curing Process:
* Phenolic resin spraying (formaldehyde emission ≤0.05ppm, EN 717-1) → Curing oven at 230°C
4. Lamination:
* Steel plate pretreatment (degreasing → phosphating → nano-ceramic coating) → Continuous hot pressing (1.2MPa, 180°C)
5. Quality Control:
* Online X-ray inspection (void detection) → Laser thickness gauge (±0.1mm accuracy) → Batch fire performance testing
Successful Project---------------------------------------------------------------------------------------

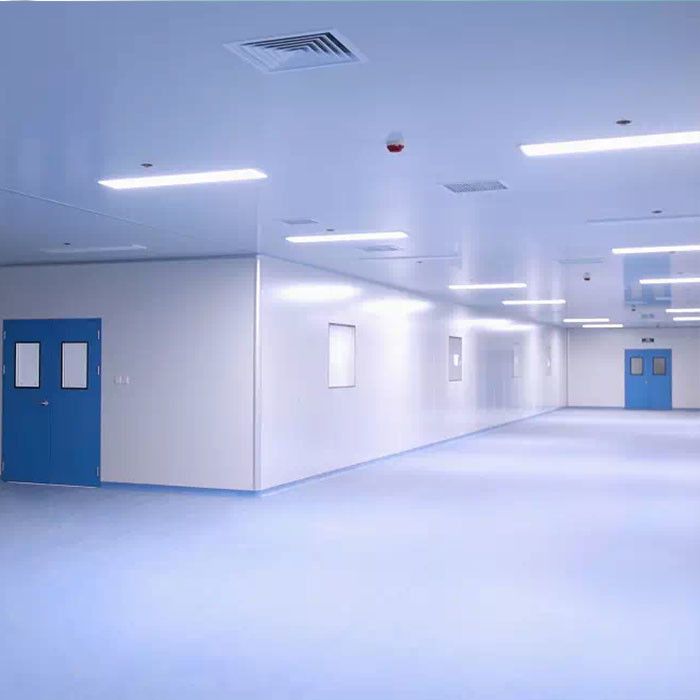

Semiconductor Wafer Fabs (Class 10 Cleanrooms)
* Solution:
* Wall-ceiling system integrated with HEPA filters
* Grounding resistance <1×10^6Ω, compliant with SEMI F47 voltage sag standards
* Case Study: 32,000㎡ deployed in a Taiwan 12-inch wafer fab project
Facilities
* Key Technologies:
* Radius corners (R≥50mm) to eliminate cleaning dead zones
* Pre-installed ports for real-time particle monitoring
Data Center Retrofits
* Energy Efficiency Data:
* U-value 0.28 W/m²·K → 18% annual cooling energy savings
Our comapny--------------------------------------------------------------------------------------
Baodu International Advanced Construction Material Co.,Ltd was established in January 2010 with the office in Beijing and factory in Hebei, China.
Baodu is a designer, manufacturer, supplier and exporter of acoustic sandwich panel, insulated metal panel, profiled steel sheet, perforated metal sheet, steel structure and warehouse.
Baodu has the patented and customized double connection sandwich panel production line and imported steel plate bending machines from Swiss land and Germany.
Baodu has an annual output of 6 million square meters of acoustic sandwich panels,100000 tons of steel structures and 1 million square meters of profiled steel sheet.
Baodu has a professional design team with more than 10 years’ experience, including 5 senior engineers,20 engineers, and 35 technicians. Baodu has over 70 intellectual property rights, More than 30 registered trademarks, CE certification and Russian GOST certification etc.
Baodu have successively served key projects in in Dubai, Mongolia, Philippine, Mexico, US , Australia,Iraq, etc. the key projects is as below : Mongolia MCS Group Gold Mine Project; Philippines Malivans 2x330MW Coal-fired Power Plant Project; China Eastern Airlines Maintenance Warehouse Project of Beijing Daxing Airport
; Iraq Basra Gas Turbine Combined Cycle Power Plant Expansion Project; Dubai Hasyan 4*600MW clean coal-fired power plant project.Welcome your coming to Baodu for a visit and cooperation!
